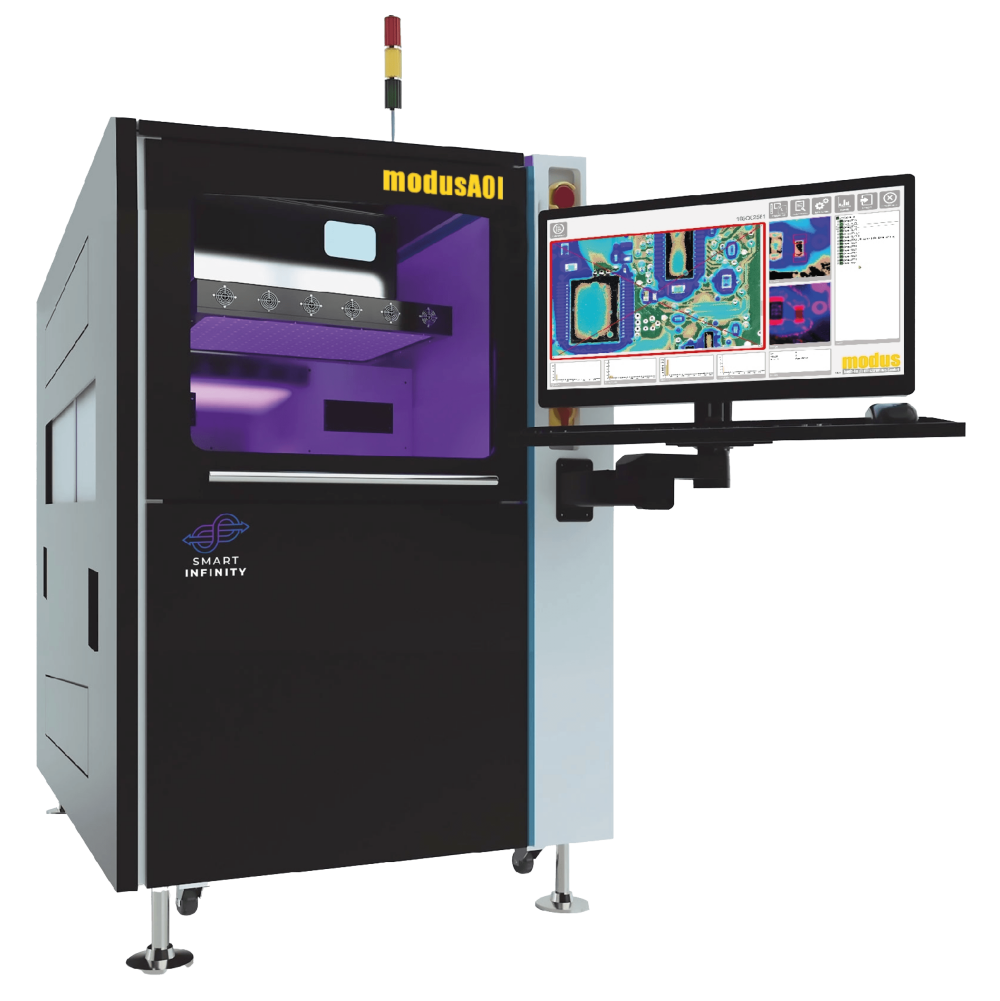

modusAOI S3-UV-INFINITY

Double-sided inspection + UV CURING

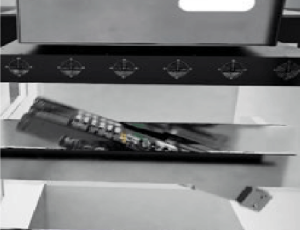

The dual system include a UV-curing and modusAOI. It is designed for coating inspection from top and bottom side. The system has one multi-LED illuminated scanner unit as well as our patented parallax-free optic. It includes a modus control unit with the latest modus software. The transport module has a system length of 1200mm. The integrated flip station serves the top and bottom view.

bild 38

Characteristics

System for double-sided conformal coating inspection for both sides of printed circuit boards.

Combination of UV-curing and integrated modus AOI for the conformal coating quality test.

All defect coverage will be detected: Lack of coverage, Keep out zone, Bubbles, FOD, Dewetting, Overspray, Splash, Orange peel, Thin coating.

Capture of any number of barcodes and data- matrix codes on the multi PCB.

bild 39

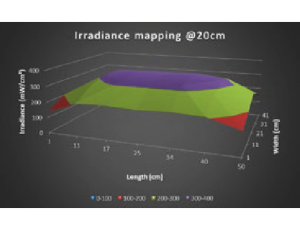

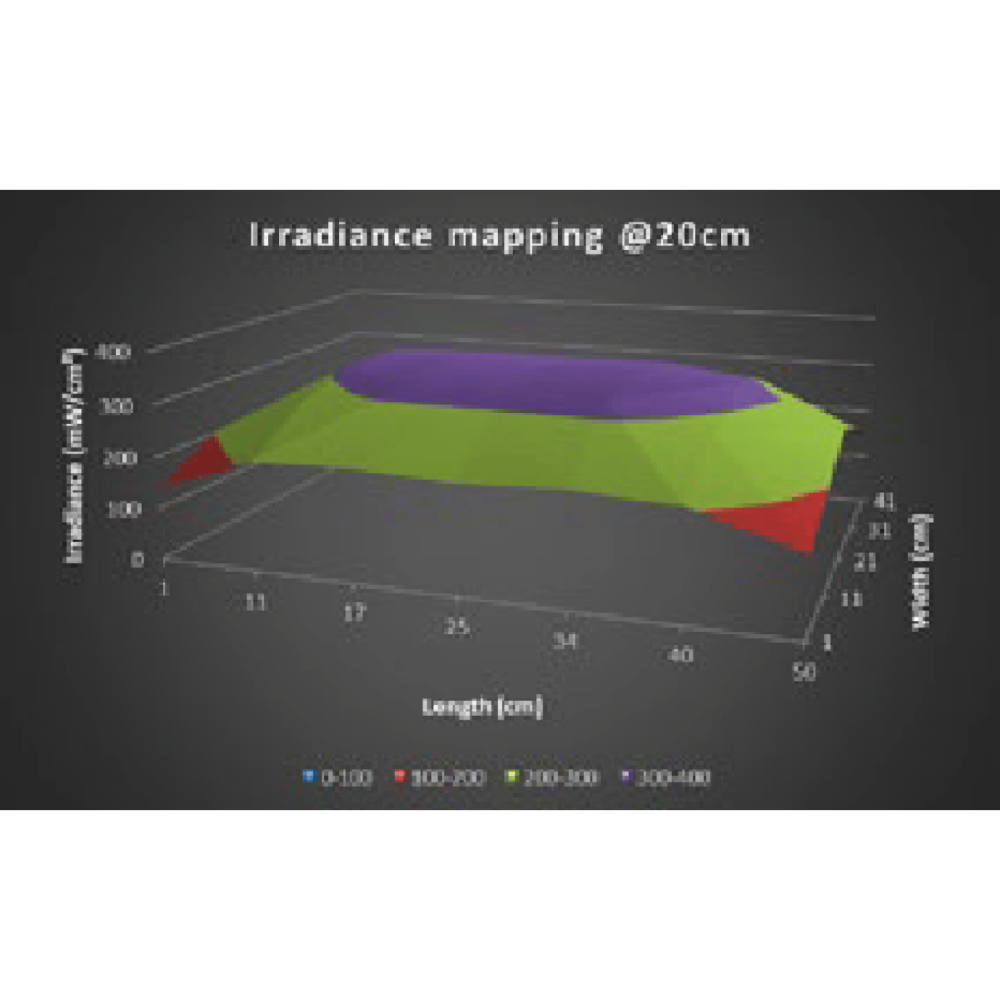

bild 40

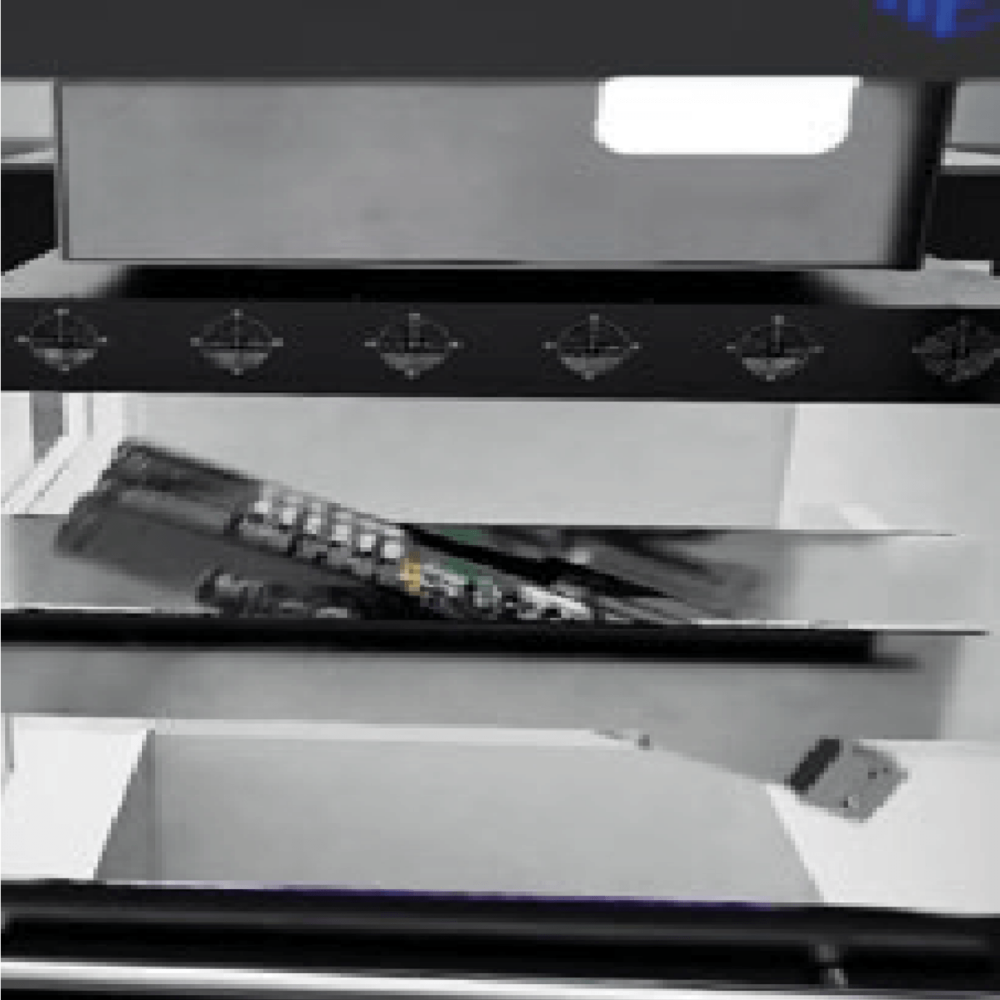

bild 41

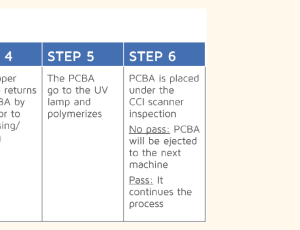

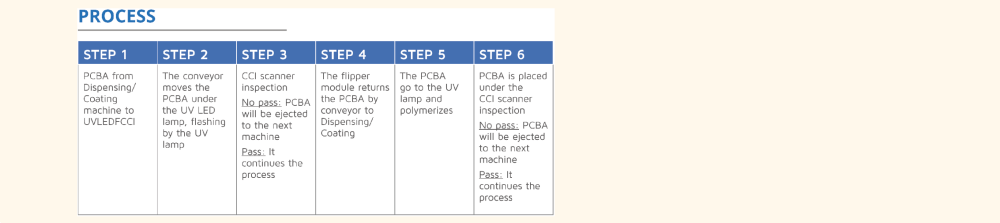

bild 42

Request an individual offer

Start now!

Technical information Coating Test

Scan unit

  • Resolution: 600 - 1200 dpi, 42μm - 21μm

  • Color depth 3 x 12 bit internal, 3 x 8 bit external

  • Light source: multi-LED illumination

  • Optional: UV LED cluster 365nm focused

  • Adjustable illumination profiles

  • Triggered light control

  • Telecentric lens for a parallax free image rectified image due to orthogonal calibration

  • Optional: Conformal coating thickness calibration

System-PC

  • Intel Core i7 4.2GHz latest generation

  • 32GB DDR4-RAM

  • DVD-writer

  • 2 x 1Gb/s network interface

  • I/O module

  • 2 x 6TB HDD’s (NAS 24/7)

  • 1 x 500GB V-NAND SSD NVMe M.2

  • Windows 10 Professional/LTSB 64Bit

  • Acronis backup software

  • keyboard

  • mouse

  • operator keyboard

  • 24“ Full-HD IPS 16:9 Monitor

Operating range

  • PCB area 420 mm x 530 mm (16.5 in. x 20.8 in.)

  • Clearance BOT min 50mm, TOP up to 50mm (1.6 in. 1.9 in.)

Inspection speed

  • Full area (double-sided) independent of the number of inspection parts: 25 seconds (including calulation time). Smaller scan area means less inspection time

Transport system and inline integration

  • Width 1200 mm x depth 1280 mm

  • Height 1456 mm

  • Weight 560 kg (47.2 in. x 50.3 in. x 57.3 in. - 1232 lbs.)

Connection values and setting conditions

  • 230 V / 50 Hz P1 or 110 V / 60 Hz

  • Power consumption of scanner 750 W

  • Temperature: 5° C - 35° C

  • Humidity: 10 % - 80 % non-condensing
